Nedo Genny 4+ Signal Generator

The signal generator for even better location of cables.

Genny 4+ signal generator significantly improves the performance of the CableTronic 4+ cable locator.
When cable diameters are small or radio signals are weak, lines that do not carry electric current cannot always be located with certainty. In these cases the Genny 4+ signal generator is a great help. It creates an alternating electro-magnetic field and feeds the signal into the cables, making detection easier for CableTronic 4+ – both at close range and at greater distances.
In addition, the depth to a located cable is displayed on the screen of the CableTronic 4+ at the push of a button. CableTronic 4+ measures the depth of a cable up to 4m with ± 5% accuracy.

Various options for feeding the detection signal are available, depending on the circumstances.

• Direct connection to any metallic part of the cable
• Signal induction by placing Genny 4+over the assumed position of the conductor, in-line with the assumed direction
• Signal clamping with the optional signal clamp

Features:

• Simple operation
• Robust design
• Choice of 2 transmitting powers
• Integrated, practical tool tray for accessories

Scope of delivery Genny 4+:

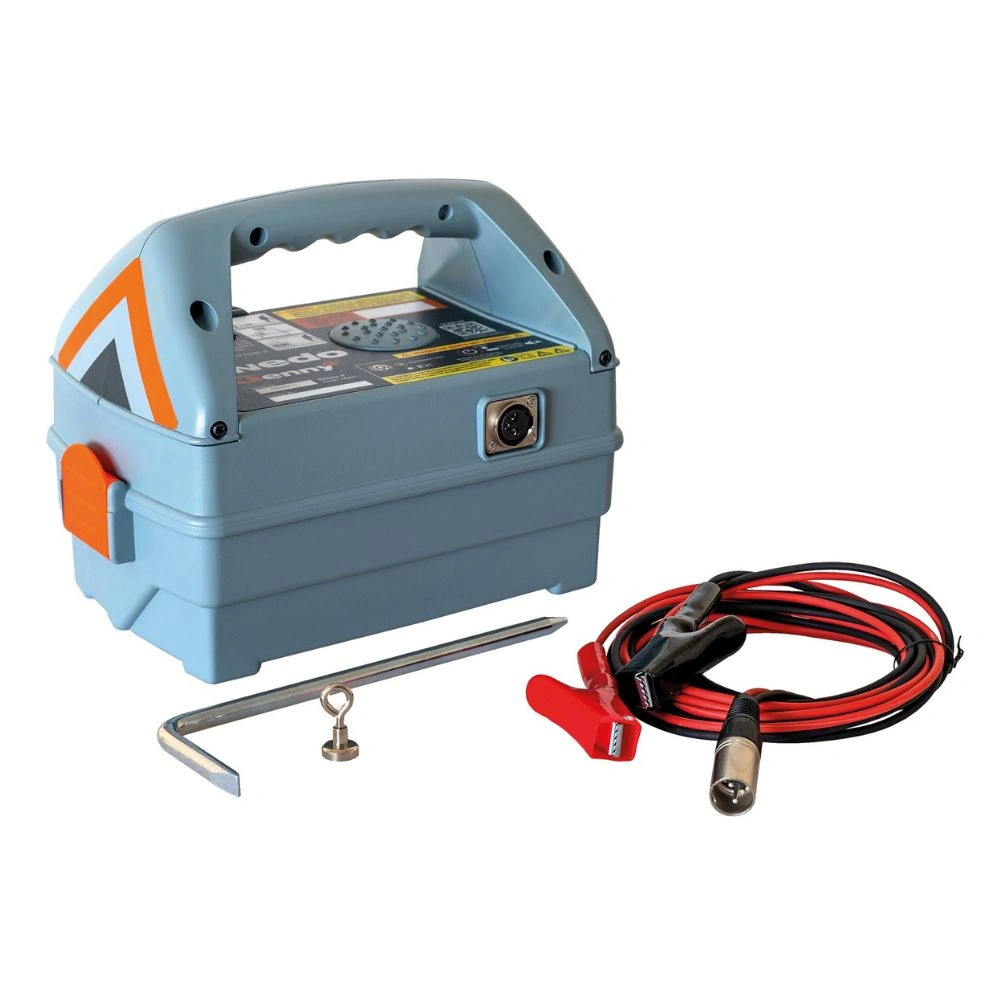

Genny 4+ signal generator incl. direct connection cable with crocodile clamps, ground stake and magnet
